Description

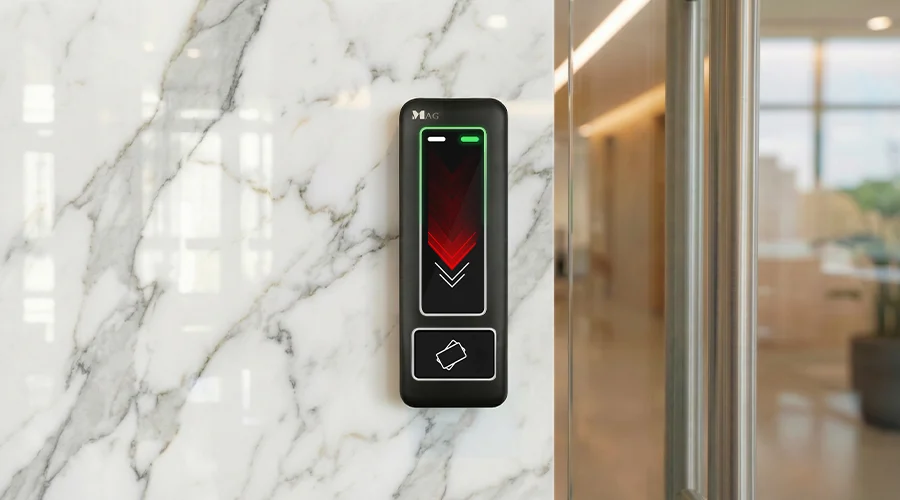

Minimalist matte-black with LED accents
Make a lasting first impression with the Veroc Series CA413-WN. Engineered with a narrow-frame design, it fits elegantly onto slim door frames where bulkier readers fail. The minimalist, flush-mount keypad is illuminated by a striking red contemporary backlight, providing a sleek, futuristic aesthetic that signals both high-end technology and uncompromising safety.

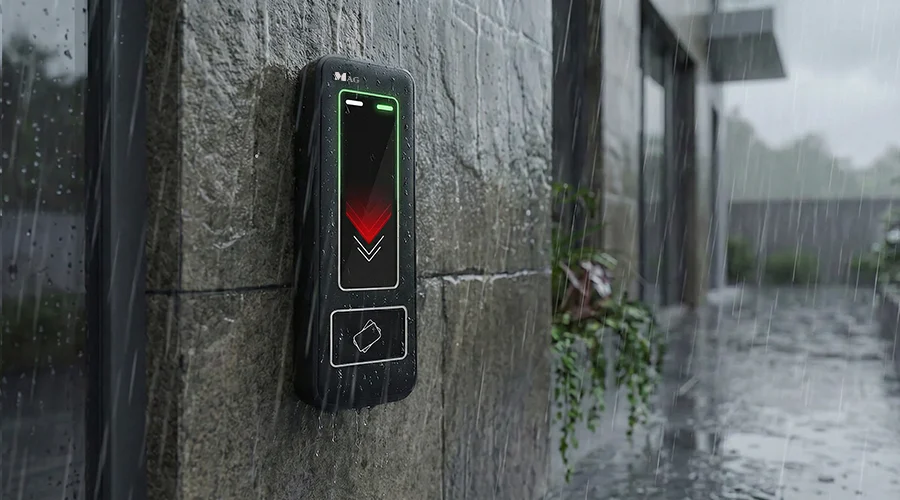

Built for Real-World Durability
CA413-WN is engineered to perform in demanding environments, indoors or outdoors. With protective rubber seals at all critical openings and an IP56-rated enclosure, the reader is shielded against dust, rain, and moisture intrusion. Its robust construction ensures long-term operational stability, reducing maintenance concerns and providing complete peace of mind for end users. Rain or shine, CA413-WN keeps your access secure.

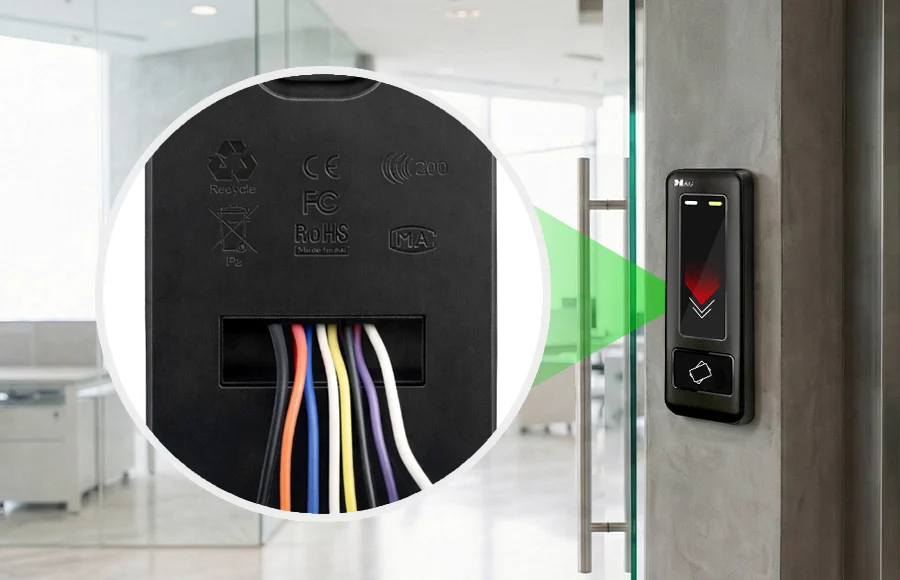

Clean & Professional Installation
CA413-WN is thoughtfully designed to support clean and professional installations. A discreet back panel cable outlet allows wiring to be routed directly through the wall, eliminating the need for exposed side cables or external trunking.
This concealed wiring approach not only enhances the overall appearance of the installation but also improves vandal resistance by minimizing accessible wiring points. The result is a streamlined finish that integrates seamlessly into modern commercial, residential, and industrial environments.
Specification:
Model |
CA413-WNE |
CA413-WNM |
Frequency |
125KHz |
13.56MHz |
Standard |
EM Standard |
1–3cm |
Reading Range |
3–7cm |
1–3cm |
Power Supply |
12–24VDC |
|
Power Consumption |
<1W |
|
UID Bits |
24~32 (Adjustable) |
|
Baud Rate |
9600 bps (RS-485) |
|
Temperature |
-20°C to +65°C |
|
Wiegand Input |
Wiegand 24~34 |
|
Wiegand Output |
Wiegand Data 0 Data 1 |
|
Serial |
UART PORT (Only Output) |
|
Relay Output |
No |
|
Open Collect Output |
No |
|
Tamper |
Limit Switch (1 Form C / 1000mA / 30VDC) |
|
Keypad |
No (Invisible Keypad Function) |
|
Ingress Protection |
IP56 |
|
Indicator |
2 LED Indicator & 1 Beeper |
|
Housing Material |
Plastic Case Housing/Frame |
|
Color |
Black |
|
Dimension (mm) |
153 (L) x 50 (W) x 30 (H) |
|
Weight (g) |
138 |
|
Ordering Info:
Model |
Description |
CA413-WNE |
EM 125 Khz |
CA413-WNM |
Mifare 13.56 Mhz |
Click here to choose the door access solution that lower the reader price when purchased as a package.
