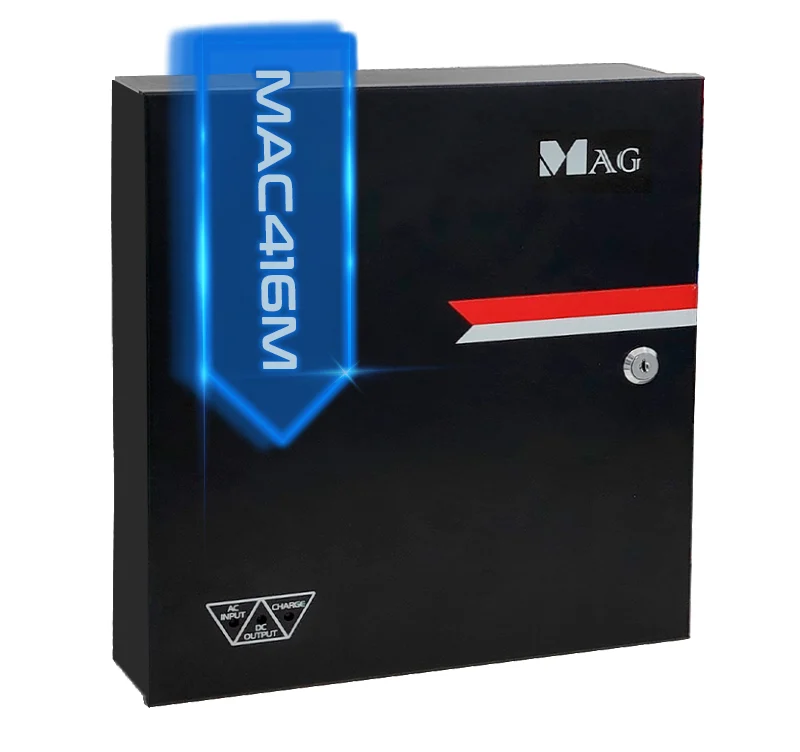

MAC416 is 16 channel relay interface to connect up to 16 lift level. Multiple MAC416 can be looped together via RS485 bus to achieve more than 16 floors. All relay is NC by default. Upon power up, all relay will become NO. Card access reader will instruct MAC416 lift relay to open designated relay depending on the floor allowed for access permission.
Download:
Brochure
Installation Manual
| Specification | Description |
| Power supply | 10 – 24VDC |
| Power consumption | 8W |
| Communication interface | RS-485 |
| Data transfer rate | RS-485 : 9600 bps / 19200 bps (N,8,1) |
| Channel | 16 form C relay output |
| Indicator | Power ; TX / RX ; relay(on/off) |
| Real time clock | No |
| Housing material | metal |
| Dimension(mm) | 180(L) x 231(W) x 62(H) |
| Weight(g) | 1780 +- 10 |
