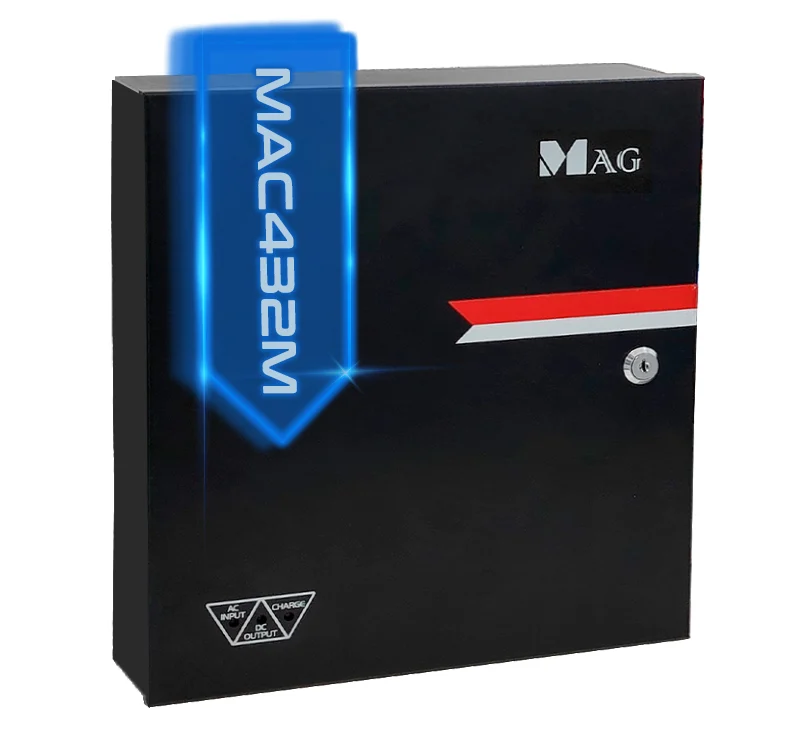

The MAC432M lift control package comprises two MAC416 16-channel relay interfaces, the package supports up to 32 lift levels and can be expanded to manage up to 64 floors by looping additional boards via an RS485 bus.
Engineered for reliability, the system features relays that are Normally Closed (NC) by default and safely transition to Normally Open (NO) upon power-up. When paired with our card access readers, the MAC432M ensures precise security by only triggering the designated relay for authorized floors, maintaining strict access for users based on their individual permissions.
Download:
Brochure
Installation Manual
| Specification | Description |
| Power supply | 10 – 24VDC |
| Power consumption | 8W |
| Communication interface | RS-485 |
| Data transfer rate | RS-485 : 9600 bps / 19200 bps (N,8,1) |
| Channel | 16 form C relay output |
| Indicator | Power ; TX / RX ; relay(on/off) |
| Real time clock | No |
| Housing material | metal |
| Dimension(mm) | 180(L) x 231(W) x 62(H) |
| Weight(g) | 1780 +- 10 |
