MAG MGI08041 P product

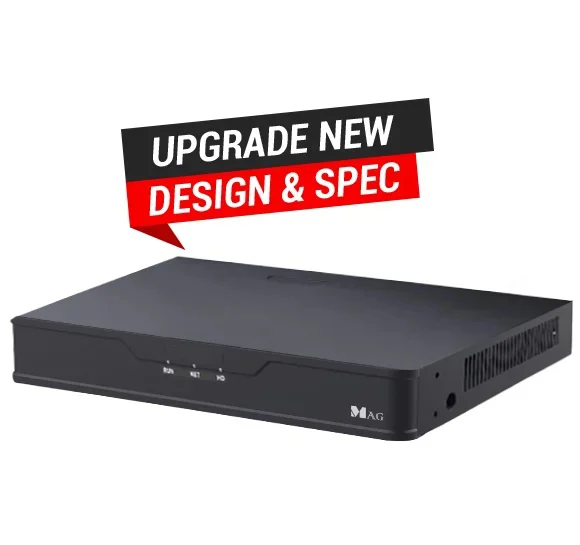

MGI08041-P – MAG 8CH NVR WITH POE

MGI08041-P is network video recorder with built-in POE that support 1 x HDD with HDMI display. It can support remote viewing of IP camera via handphone or internet browser on PC. It also can provide much higher resolution up to 8 megapixel to give you maximum recording clarity possible for IP camera.

Download:
Specification
All camera brochure

*Notes: Ready for Pre-Order. For more information please contact our sales.

Price: Contact a local reseller.
SKU: 40.26.002.20 Categories: ,

Description

Special features:

MAG IP CCTV comes with free download GuardViewer mobile apps that allow you to monitor your premise 24/7 remotely from anywhere and anytime at your convenience. You can playback the video and set an alarm notification.

IP CCTV GuardViewer

Standard features:

  • Support Ultra 265/H.265/H.264 video formats
  • 8-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
  • HDMI and VGA simultaneous output
  • Up to 8MP resolution recording
  • 1 SATA HDD up to 10TB
  • Support cloud upgrade

Start enjoying better image quality, higher resolution and more convenient wiring today. Click here to contact us now for more info.

If you are not ready to buy now, click here to learn about the 4 common problems of IP based CCTV system to help you make a wise choice.

Specification:

Table MGI08031 P New2

Table SP1 – 5 + 1 ZONES SPECTRA SP5500
Video/Audio Input
IP Video Input Up to 8.0 Mega Pixel
Two-way Audio Input 1/3”, Progressive scan CMOS Sensor
Network
Incoming Bandwith 64Mbps
Outgoing Bandwidth 48Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS,
SMTP, RTSP, IPv4
Video/Audio Output
HDMI/VGA Output HDMI:
3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz,
1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz,
1280x720/60Hz, 1024x768/60Hz
Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 8-ch
Corridor Mode Screen 3/4/5/7/9
Video/Audio Output
HDMI/VGA Output HDMI:
3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz,
1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz,
1280x720/60Hz, 1024x768/60Hz
Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 4-ch
Corridor Mode Screen 1/4
Decoding
Decoding Format Ultra 265, H.265, H.264
Live view / Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30,
8 x 720P@30
Hard Disk
SATA 1 SATA Interface
Capacity up to 10TB
External Interface
Network Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel 1 x USB2.0, 1 x USB3.0
POE
Interface 8 RJ45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port, Max 75W in total
Supported Standard IEEE 802.3at, IEEE 802.3af
General
Power Supply 52V DC
Power Consumption ≤ 9 W (without HDD)
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 260mm × 240mm × 46mm (10.2"×9.4"×1.8")
Weight (without HDD) ≤1.1kg (2.43lb)
