MAG MGI16052 P product

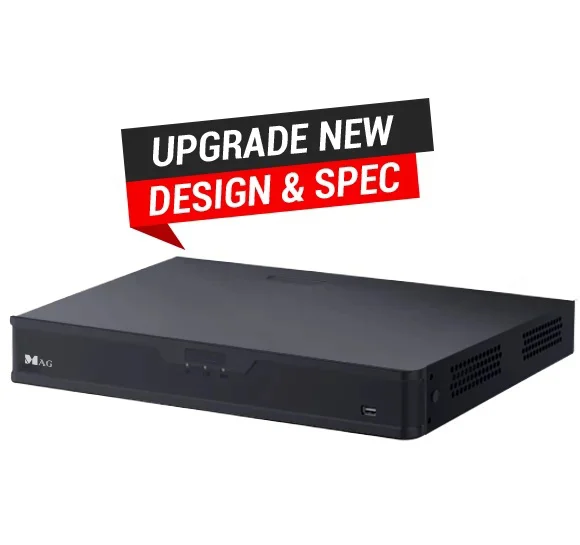

MGI16052-P – MAG 16CH NVR WITH POE

MGI16052-P is network video recorder with built-in POE that support 2 x HDD with HDMI display. It can support remote viewing of IP camera via handphone or internet browser on PC. It also can provide much higher resolution up to 8 megapixel to give you maximum recording clarity possible for IP camera.

Download:
Specification
All camera brochure

*Notes: Ready for Pre-Order. For more information please contact our sales.

Price: Contact a local reseller.
SKU: 40.26.006.24 Categories: ,

Description

Special features:

MAG IP CCTV comes with free download GuardViewer mobile apps that allow you to monitor your premise 24/7 remotely from anywhere and anytime at your convenience. You can playback the video and set an alarm notification.

IP CCTV GuardViewer

Standard features:

  • Support Ultra 265/H.265/H.264 video formats
  • 16 channel input
  • Plug & Play with 16 independent PoE network interfaces\
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840×2160) resolution
  • VGA and HDMI simultaneous output
  • Up to 12 Megapixels resolution recording
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade

Start enjoying better image quality, higher resolution and more convenient wiring today. Click here to contact us now for more info.

If you are not ready to buy now, click here to learn about the 4 common problems of IP based CCTV system to help you make a wise choice.

Specification:

Table SP1 – 5 + 1 ZONES SPECTRA SP5500
Video/Audio Input
IP Video Input Up to 12.0 Mega Pixel
Two-way Audio Input 1-ch RCA
Network
Incoming Bandwith 160Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output HDMI:
3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz,
1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz,
1280x720/60Hz, 1024x768/60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16
Video/Audio Output
HDMI/VGA Output HDMI:
3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz,
1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz,
1280x720/60Hz, 1024x768/60Hz
Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16
Decoding
Decoding Format Ultra 265, H.265, H.264
Live view / Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30,
16 x 720P@30
Smart On:2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30
Hard Disk
SATA 2 SATA Interface
Capacity up to 10TB
External Interface
Network Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel Front: 1 x USB , Back: 1 x USB2.0, 1 x USB3.0
POE
Interface 16 RJ45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port, Max 75W in total
Supported Standard IEEE 802.3at, IEEE 802.3af
General
Power Supply 100 ~ 240 V AC
Power Consumption ≤ 10 W (without HDD)
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions 380mm ×315mm × 53mm (14.9" × 12.4" x2.1”)
Weight (without HDD) ≤2.6kg (5.29lb)
