WING205 – MAG WING ARM SWING

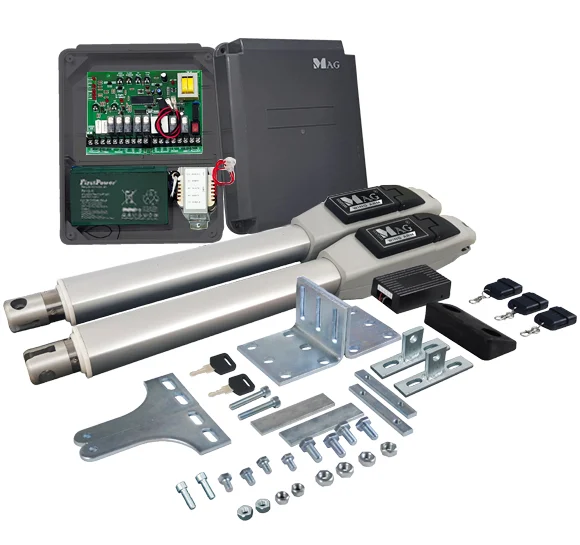

MAG Wing 205 is an electro-mechanical complete system for automatic arm gate system. it composed of primary of an electronic panel unit that controls the actuator motor to open or close the gate in the swing motion. It is designed with a special release key to free the gate movement during power failure.

Download:
Brochure
Quick Guide
Specification

Price: Contact a local reseller.
SKU: 30.03.005.30 Categories: ,

Description

Standard feature:

  • Max gate weight per leaf is 250 kg
  • Full DC operation to avoid any potential electric hazard
  • Backup battery standby for power failure
  • Actuator capability for 110° opening within only 8 to 10 second
  • No underground installation
  • Coded remote control allow 30 to 50 meter transmission

Specification:
