AR888ULS Product New 2

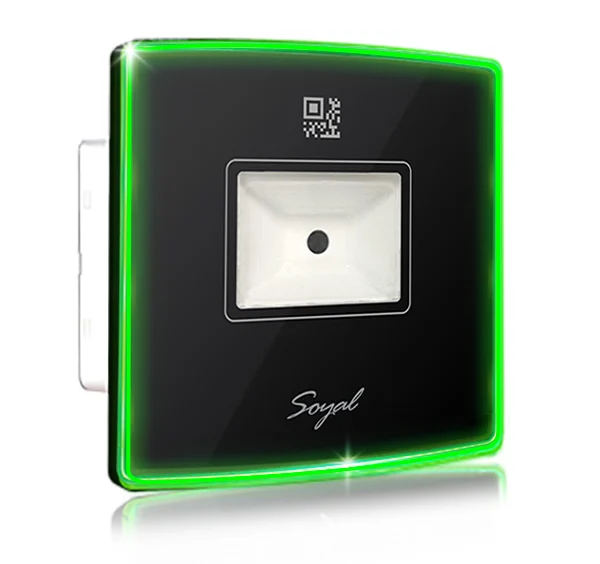

AR888ULS – SOYAL QR CODE READER

AR888ULS QR code reader can support quick access in less than 1 seconds verification. It can be easily mounted on the pedestrian gate to control visitor pass. Ideal usage for gym centre, theme park, cinema entrance, office building, service residences, condominium, school, etc.

Download:
Specification

Price: Contact a local reseller.
SKU: 950.07.001.03 Categories: ,

Description

Application:

  • Door access control
  • Turnstile access control
  • Lift access control
  • Visitor management

Special feature:

  • Quick and accurate
    Each verification of credentials takes around 1 second to minimize queues. Able to read QR code from any surface either paper or mobile phone.
  • Slim and stylish design
    Designed with edge LED lighting to enhance the appearance of any contemporary offices and premises. It is also equipped with a buzzer.
  • Flexible compatibility
    It can be easily integrated with any 3rd party visitor management software to manage the visitor pass and event reporting. It comes with 3-in-1 usage (proximity, mifare and QR) to cater to different requirements.

User profile ME VMS 1

ME VMS2

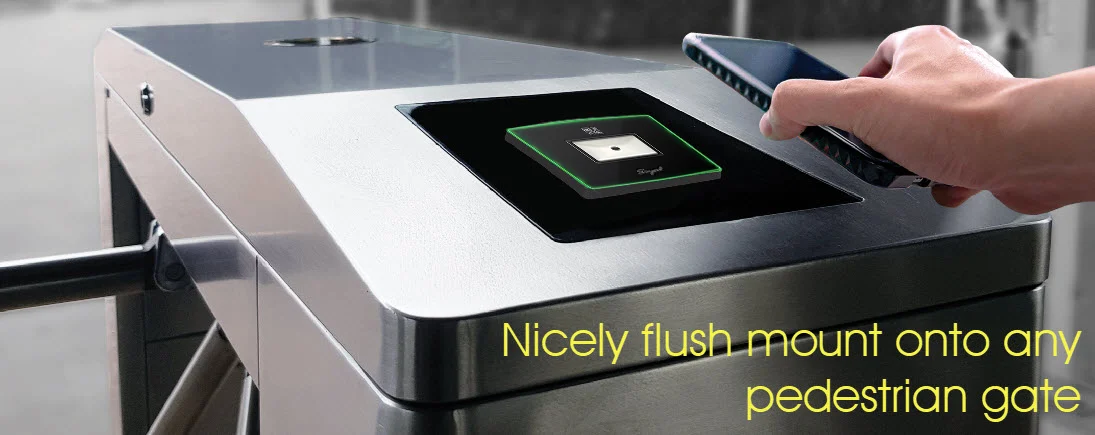

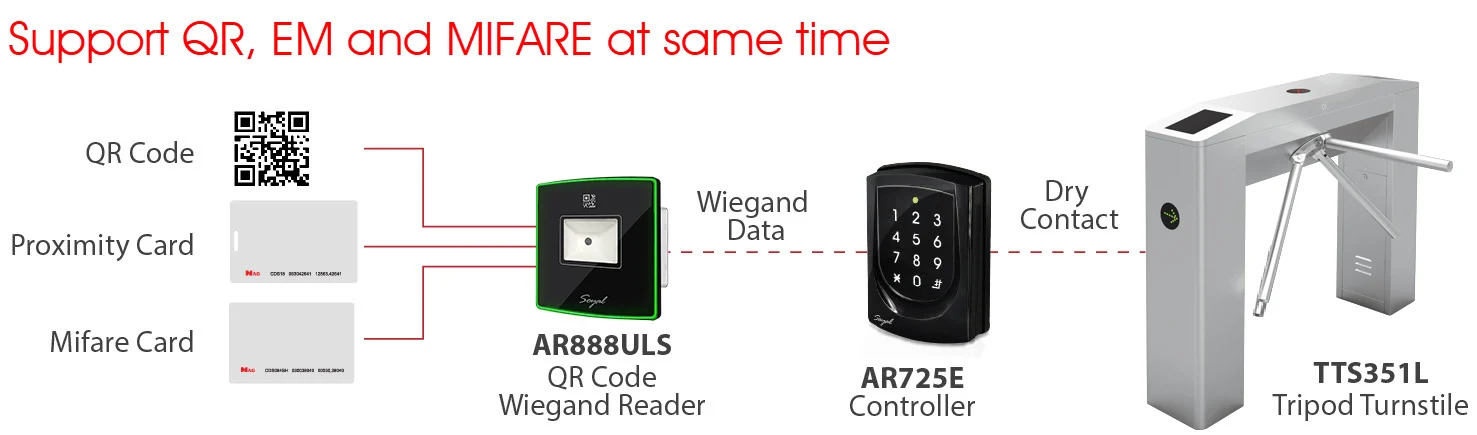

Scan QR Code at Pedestrian Gate3 NewDiagram QR Code Diagram4 New

Technical Parameters

Table SP1 – 5 + 1 ZONES SPECTRA SP5500
Feature Description
Power Consumption 12VDC; <1W
Frequency Dual Band 125kHz & 13.56MHz (EM & Mifare, DESFire)
Response Time < 1 sec
Output Format WG26/34 / QR Code
Scanning Distance 50–200mm
Working Temperature -20°C ~ +65°C
Dimension 88mm(H) × 86mm(W) × (9mm(D)+37.5mm(D))
Housing Material Tempered Glass Panel+ABS (Fire-proof level: 94V0)
