Description

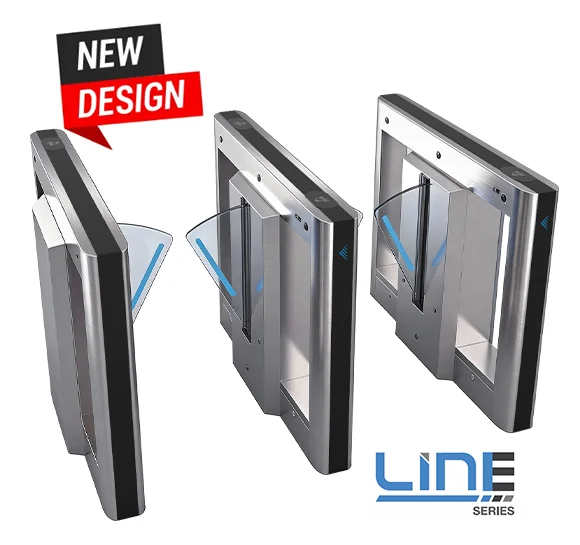

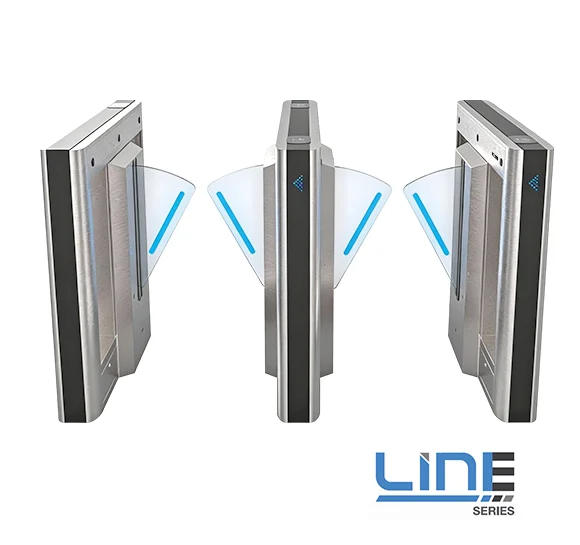

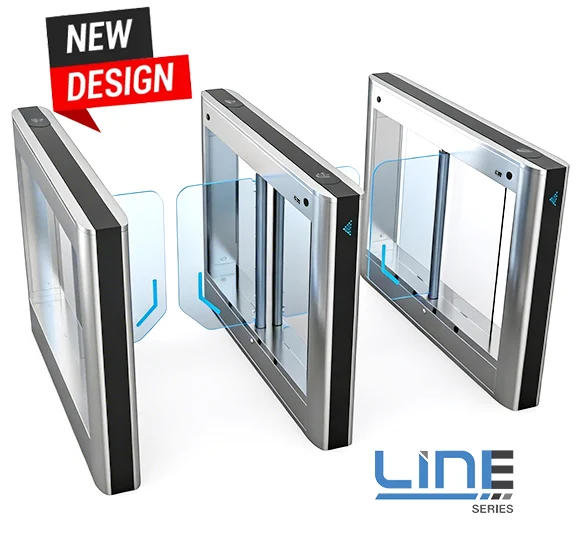

LiNE FPG257 is designed to achieve the right balance of cost-effectiveness and consistent quality. With its streamlined design, LiNE FPG257 simply add value to any building entrance by tightening pedestrian security without looking out of place.
Optimized for best value
We optimized to only include the most essential feature while maintaining durability for LiNE. This made LiNE FPG257 a minimalist flap barrier with durability, all without the expensive price of European brand.
UniLiNE concept standardized the design of all types of gate and leverage bigger economy of scale to make LiNE series more affordable.
| Features | Swing Barrier FPG257 |
| Consecutive Access Memory | ✓ |
| Bi-directional Access | ✓ |
| Time-out Auto-close | ✓ |
| LED Indicator | ✓ |
| Safety Sensor Auto-reverse | ✓ |
| Buzzer Alarm | ✓ |
| Emergency Auto-open | ✓ |

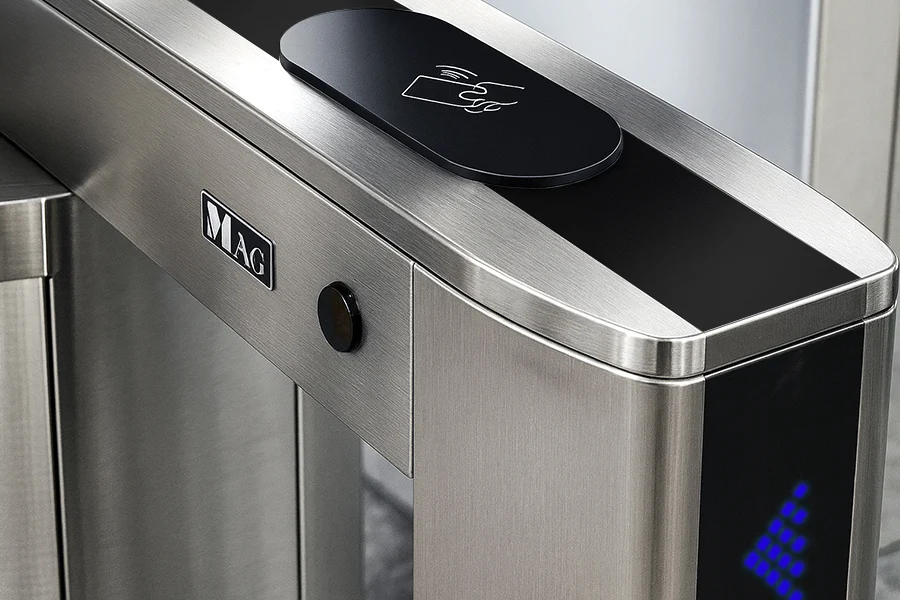

Slim as a LiNE
The thin black line flowing thorugh the housing, well contrasted by the stainless steel metallic texture made LiNE even slimmer on the eye. Slim form factor of 160mm is practical to fit most brand access reader, while allowing more lanes to be installed to cater to the high traffic during peak hours.

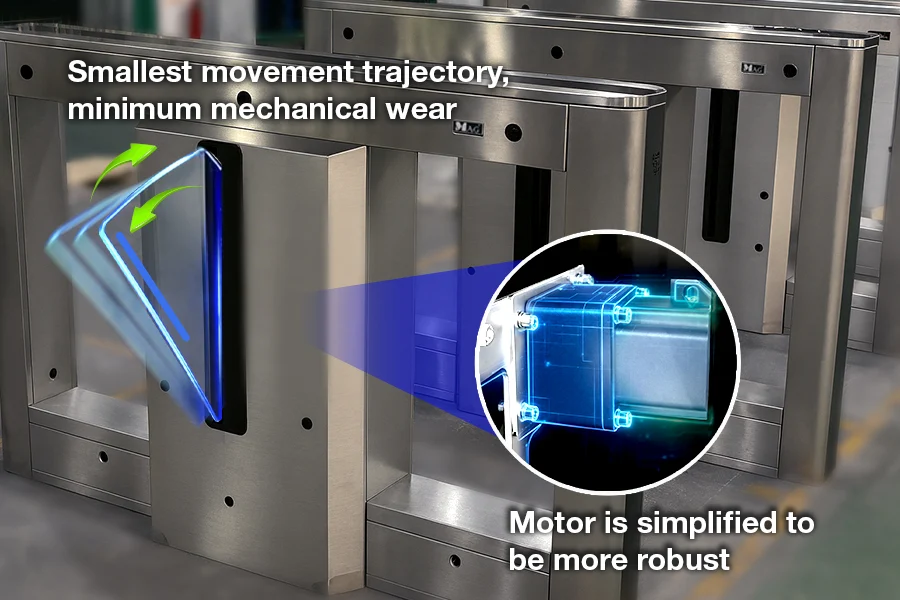

Efficient
FPG257 uses a DC Brushless motor which requires virtually ZERO maintenance. The movement trajacteory is designed to be smallest to ensure efficient pass-thru, while minimizing the mechanical wear, thereby lowering the long-term cost of ownership.

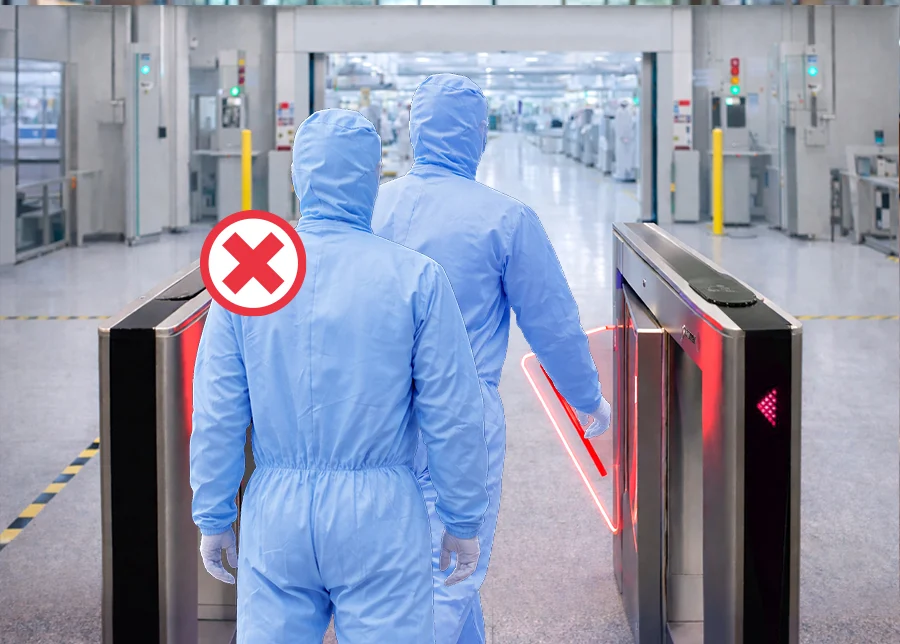

Safety and security when it matters
The flap panels will auto reverse to avoid pinching user. Flap panels will turn red with an alarm buzzer to alert unauthorized user, tailgating or incorrect access direction attempt so that the security guard can react immediately on the spot.

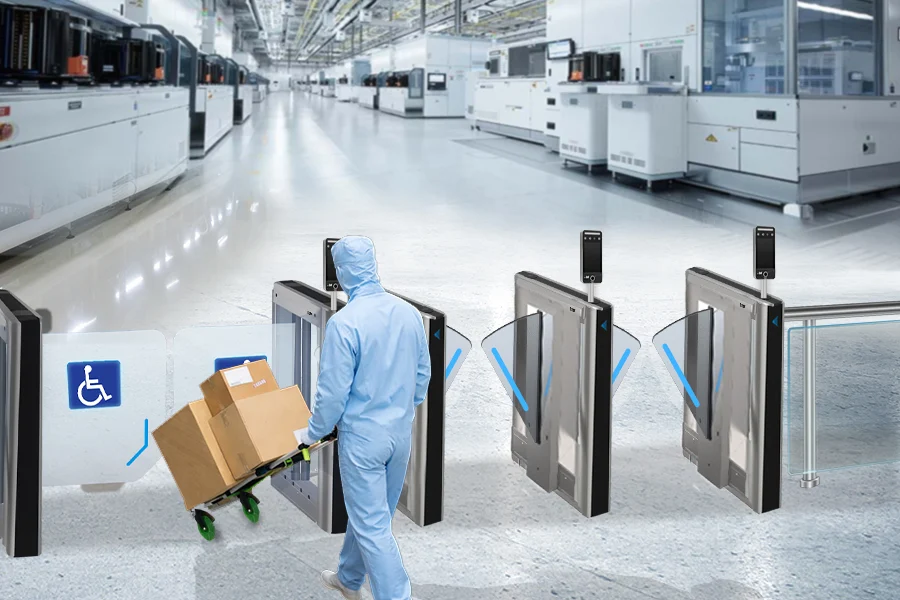

Wider access for special needs
To provide secured and comfortable access alongside your flap barrier, you no longer need to mix and match different product at the same entrance. Our swing barrier, with the same UniLINE housing can provide 900mm wide passage width and fit in seamlessly next to multiple lane of LINE flap barrier.

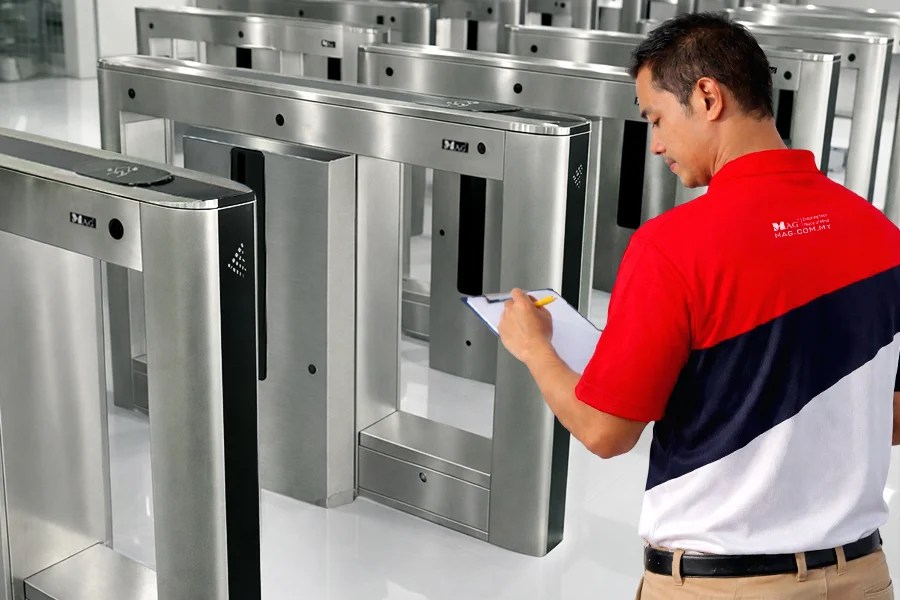

Easier to accommodate project schedule
Unforeseen delay is common in most projects. You are worried about the extra storage/penalty cost if the gate arrives too early or too late. Let us know your project date forecast so that we can plan the production to meet your dateline. All gate is 100% QC tested as per our ISO9001 procedure just before your collection.
Complete your building security today at an affordable cost. Click here to contact us now for more information.
Specification:
| Description | Parameters |
| Body Material | Stainless Steel SUS304 |
| Passage Width | 550mm |
| Door Opening / Closing speed | Programmable, >0.6s. |
| Optimal Flow Rate | Up to 35 person per minute |
| Power Supply | AC220/110V±10%, 50/60Hz |
| Power Consumption | <150W (Operational) |
| Motor | DC Brushless Motor, 24V |
| Input Connection | Dry contact pulse |
| Working Environment | Indoor and sheltered outdoor |
| Working Temperature | -20°C - 70°C |
| Relative Humidity | ≤ 90%, non-condensing |
| Door Material | Acrylic |
| IP Rating | IP 4X |
| MTBF | >5 million cycles |
