Description

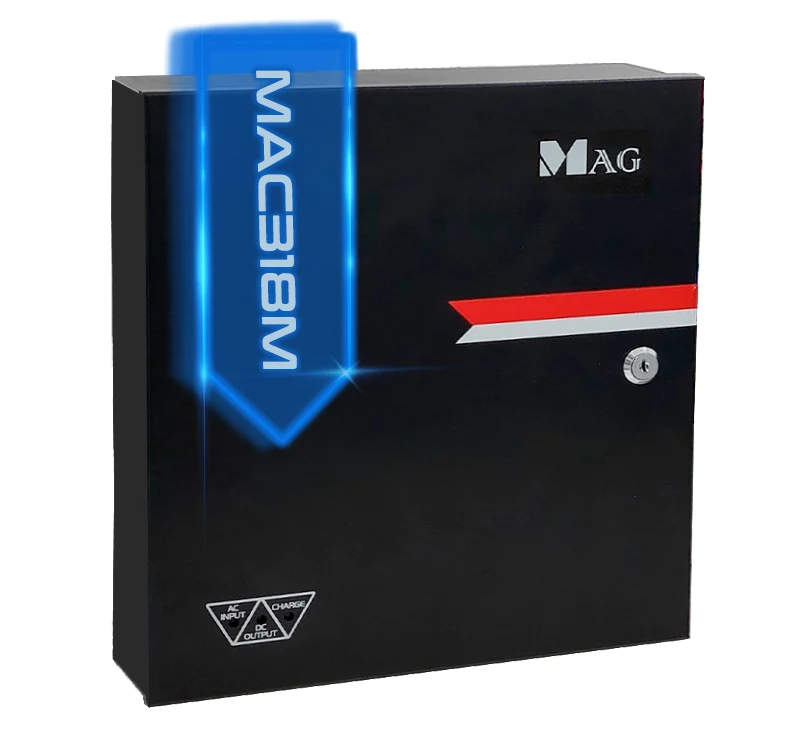

MAC318 connects to host PC through RS485 or TCP/IP.
- Provide a more efficient and centralized control for multiple readers
- Allows grouping of multiple reader into door groups for easier management
- Supports emergency all door open function (through software or push button)
- Alarm output when reader is offline
- Scheduled door unlock
- Scheduled auto reset of anti-passback status
- Can use connected reader to manually control other electrical equipments.
- 4 output for scheduled automation function. IO can be programmed to turn on lights or other equipment based on weekly time schedule.
Specification
| Specification | Description |
| Card users | 15,000 |
| Memory transaction | 11,000 |
| Time zone | 63 |
| Holiday | 120 |
| Door group | 255 |
| Anti-passback | Global anti-passback among 16 readers |
| Node address setting | On board DIP switch |
| Automation function | Programmable 4 input and 4 output |
| Duress function | 4 set of duress pin number |
| DirectPC software support | YES |
| Programming method | Program new user and operation parameters through software. |
| Max reader supported | 16 readers |
| External Wiegand port for anti-passback function | 2 port for in and out |
| User expiry date | End only – Full range for all users |
Parameter
| Specification | Description |
| Environment temperature | -20 C to +75 C |
| Serial port | RS485, 9600, N, 8, 1 1 bus for host PC, 2 bus for reader. |
| Power consumption | 15-24 VDC. Less than 2.5W. |
| Dimension (mm) | 180(L) x 231(W) x 62 (H) |
| Weight | 1890 g |
