Description
Minimalist matte-black with LED accents

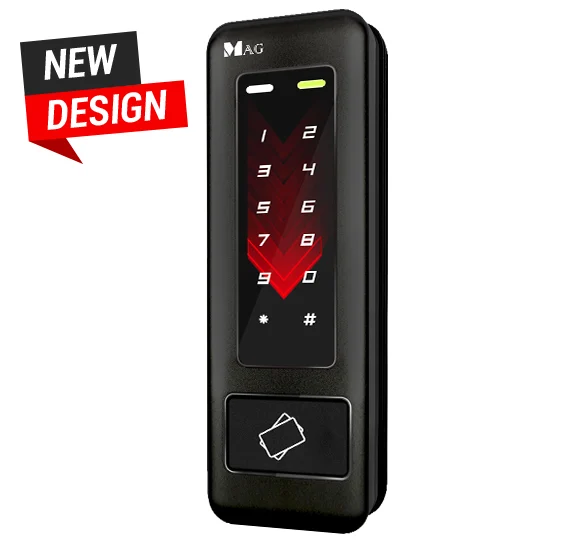

Make a lasting first impression with the Veroc Series CA413-T. Engineered with a narrow-frame design, it fits elegantly onto slim door frames where bulkier readers fail. The minimalist, flush-mount keypad is illuminated by a striking red contemporary backlight, providing a sleek, futuristic aesthetic that signals both high-end technology and uncompromising safety.

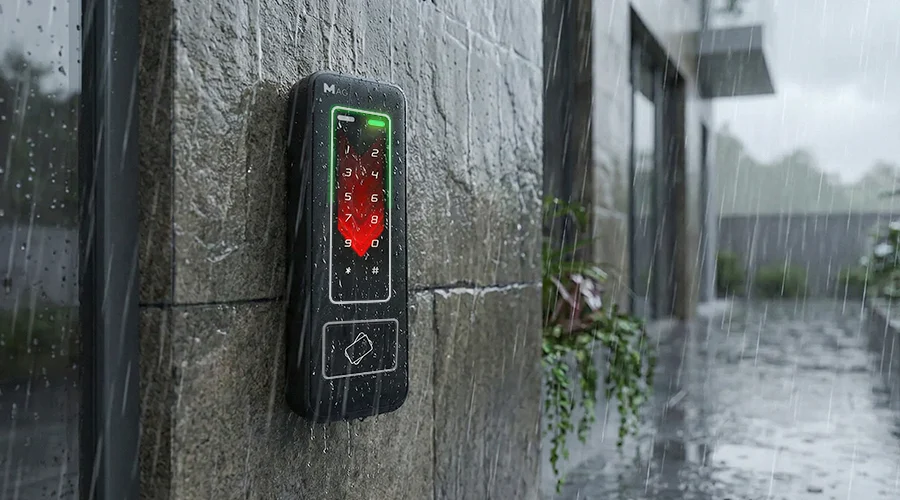

Built for Real-World Durability
CA413-T is engineered to perform in demanding environments, indoors or outdoors. With protective rubber seals at all critical openings and an IP65-rated enclosure, the reader is shielded against dust, rain, and moisture intrusion. Its robust construction ensures long-term operational stability, reducing maintenance concerns and providing complete peace of mind for end users. Rain or shine, CA413-T keeps your access secure.
Real-Time Access Management, Anywhere
Manage every site’s card permissions via mobile. Hybrid Cloud keeps your system synced in real-time, ending the stress of manual updates and guard verification calls.
End Lobby Congestion
Keep your entrance clear and traffic moving with MagNicas pre-registration. Visitors bypass the desk via self-service consoles, freeing your staff to focus on what matters most.
Eliminate the Risk of Card Duplication
End the threat of card cloning with our DESFire personalized encryption. Secure your building with elite protection that ensures only authorized entry while keeping your liability low.

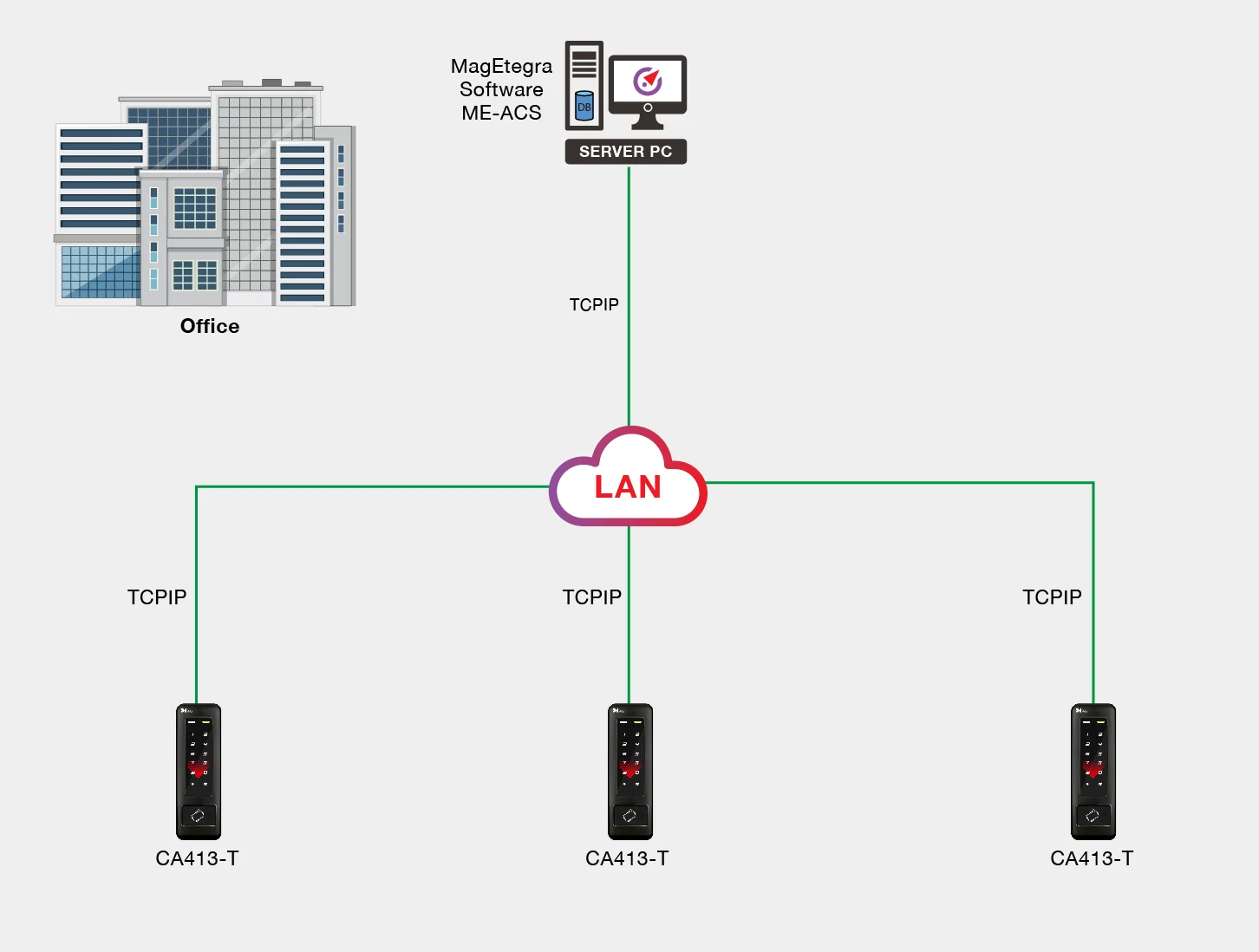

Scalable TCPIP Connection
Multiple CA413-T readers can be connected to the Local Area Network by TCP/IP to facilitate seamless system expansion. Ensuring high-speed data synchronization without the need for complex wiring.
Never lose your data
In the event of a network breakdown, all access events will be automatically stored inside the reader’s memory for up to 32,000 transactions. All data will be uploaded back to the multi-door controller or software upon resuming network connection.

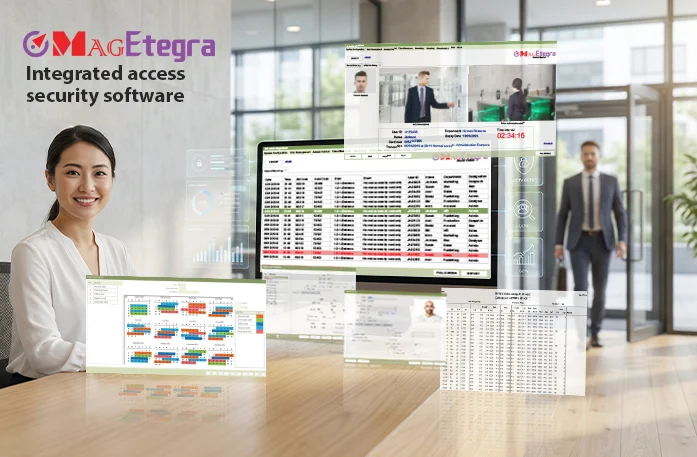

Simplified Security, Increasing Productivity
MagEtegra software suite consists of ME-ACS and ME-VMS to manage tenants and visitors respectively for door access, parking access, lift access and time attendance. The simplified free Lite version of ME-ACS software is perfect for small offices. The Standard and Pro-Basic version is good for mid-big size offices or factories. The Pro-Advance version will be powerful enough to manage the entire building.
Up and running most of the time
Prolonged downtime will give an opportunity for an intruder to exploit the momentary security loophole. MAG authorized dealers can leverage the wealth of experience in our support team, online knowledge base, warranty service and good spare parts availability for repairing to ensure any technical issue can be resolved faster.
Start enjoying the enhanced modern look of your entrance door while staying safe inside today. Click here to contact us now for more info.
Specification:
Model |
CA413-RKE / CA413-TKE |
CA413-RKM / CA413-TKM |
Frequency |
125KHz |
13.56MHz |
Reading Range (Depends on Tags) |
3–7cm |
1–3cm |
Power Supply |
12–24DC |
|
Power Consumption |
<5W |
|
Communication Interface |
T-TCP/IP, R-RS485 |
|
Baud Rate |
9600 bps (8N1) |
|
Temperature |
-20°C to +65°C |
|
Digital Input |
Egress (R.T.E.) / Door contact |
|
Relay Output |
Lock Relay |
|
Lock Relay Time |
ON/OFF, 0.1–600 Sec. |
|
Alarm Time |
Toggle, 1–600 Sec. |
|
Tamper Switch |
Limit Switch (Form C) |
|
User Capacity |
CA413-RKE / CA413-RKM |
CA413-TKE / CA413-TKM |
3,000 User (Card / Pin) |
16,000 User (Card / Pin) |
|
Event Log |
1,500 |
32,000 |
External Reader |
1 Wiegand port |
|
Anti-Pass-Back |
Yes |
|
Serial Port |
Yes |
|
LCD Panel |
No |
|
Transistor Output |
Arming LED (or Security trigger signal) / Alarm / Duress |
|
Ingress Protection |
IP56 |
IP65 |
Indicator |
2 LED & 1 Beeper |
|
Keypad Material |
Illuminated Touch Panel |
|
Housing Material |
Plastic Case Housing / Frame |
|
Time Zone |
11/63 (Connect to Multi-Door Networking Controller) |
|
Operation Mode |
Standalone / Networking |
|
Color |
Black |
|
Dimension (mm) |
153 (L) x 50 (W) x 30 (H) |
|
Weight (g) |
150 |
|
Ordering Info:
Model |
Description |
CA413-TKE |
EM 125 Khz |
CA413-TKM |
Mifare 13.56 Mhz |
