CP3 – STANDARD DUAL LANE PC BASED

CP3 is a standard parking access control system that supports 1 entrance and 1 exit barrier gate at the guardhouse to restrict unauthorized vehicles. CP3 car park access system can support up to 3000 users with an anti-passback function. CP3 offer full selections of short-range, mid-range and long-range RFID parking access reader to fulfil the level of convenience desired.

Download:
Specification
Soyal Brochure
Quick Guide

Price: Contact a local reseller.
SKU: 10.01.005.10 Categories: ,

Description

CP3 parking card access system is ideal for standard condominium, gated community, commercial building or factory. This is a simplified mid-budget solution leveraging on SOYAL AR716-E02 – Dual Reader Interface.

The simplest way to be in control
You can immediately deny entry to the tenant that did not pay monthly maintenance service fees. This can effectively help to improve the service fees collection rate. The system also immediately denies entry to the tenant that has been blacklisted.

No more hand getting wet
Mid-range and long-range readers allow the user to flashcards from inside the car without winding down windows. No more hands getting wet during those rainy days. You can enjoy the fullest comfort from the benefit of our mid-range and long-range RFID technology.

How does the standard parking card access system work?
The entry and exit reader is connected to AR716-E02 (Dual Reader Interface) with an anti-passback function. Support up to 3000 cards. During entry or exit, flash the proximity card in front of the reader. Upon identity verification, AR721E will trigger the barrier gate to open.

CP3 How does standalone parking access control work

CP3 is connected to MagEtegra ME-ACS software. All user profiles can be recorded into ME-ACS software. You can add/edit/delete users in software and download the user changes into AR716-E02. ME-ACS software offers a clean GUI instead of crowded the screen with unnecessary functions. A security guard or operator with minimum IT knowledge will be able to operate the software easily. After updating the user changes, the PC can be unplugged from CP3. CP3 shall continue to run standalone without requiring any software connection.

3 types of readers can be connected to AR716-E02 (Dual Reader Interface). Each reader has a different reading range to cater to different budgets and levels of convenience desired.

rangereader

Prevention is better than cure.
It is better to block unauthorized visitors right at the entrance rather than trying to catch them after they are inside the premises. Filtering out unauthorized visitors from the very beginning will effectively reduce internal security threats.

Fix any problems fast
The intruder might take advantage of the security loophole when the gate is down for a long time. MAG authorized dealers can leverage our wealth of experience in our support team, online knowledge base and warranty service to ensure any technical issue can be resolved faster. MAG offers full spare parts and repairing service locally at an affordable price to ensure your gate can resume operation in the shortest time possible.

Ordering info:

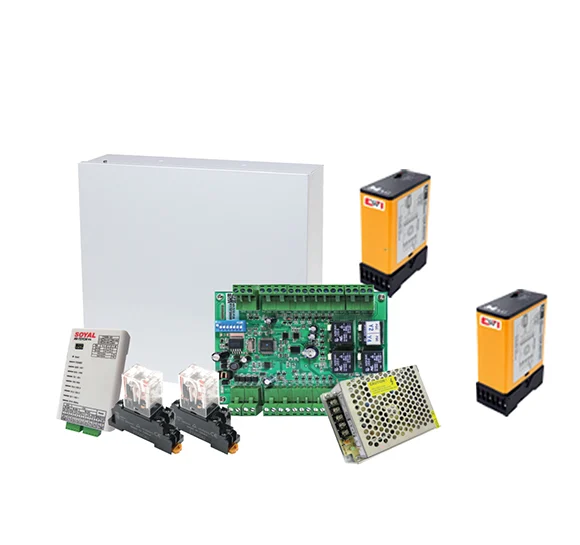

Each CP3 system consists of 1 x Main system (CP3M) and 2 set x chosen reader package. CP3M main system is the brain of the system and consists of the following items as shown in the product picture.
– SOYAL AR716-E02 Dual Reader Interface
NVS1230P12V, 3A power supply
– Metal box
SOYAL AR321CMRS485 to USB converter
– 2 nos MAG BR618Tfast speed 1.8-sec barrier gate
– 2 pcs MAG loop detector
– Free MagEtegra ME-ACS Lite version software

Following are the 3 options of Reader Package available for your choice: short-range, medium-range or long-range.

CP3R1 2

CP3R1 – Short Range Reader Package
– SOYAL AR721H reader
MAG Gooseneck – Relay module

Affordable short-range reader (8cm). The user needs to stop the car, wind down car side windows to flash the card. This allows the security guard and CCTV system to record the driver’s face.

CP3R2

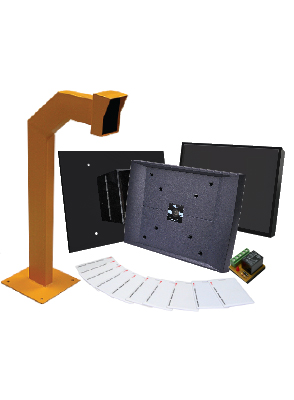

CP3R2 – Mid Range Reader Package
MAG AR200U mid range reader
MAG Gooseneck
– MAG weatherproof enclosure with bracket
– Relay module
– 10 pcs MAG CDS18L long-range EM proximity card

Best value mid-range reader (80cm to 120cm). Reading range will depend on the solar film installed to windows. Users no need to wind down the windows and can just flash the card from the comfort inside the car.

Click here to learn about 4 common problems faced by a mid-range reader.

CP3R2

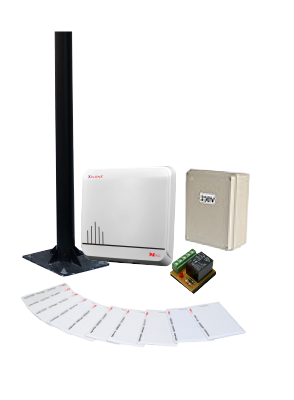

CP3R3 – Long Range Reader Package
MAG AR300U Xclone UHF long range reader
MAG metal pole
– PVC box
– Relay module
– 10 pcs MAG CDUS133L Xclone UHF long-range card

Advanced UHF long-range reader that can read up to 10 meters (free air) depending on the type of solar film installed, interference at the site and proper card reading angle. Xclone dual encryption technology gives you double safety to prevent your access card from being cloned. Xclone is designed to work without interference despite you installed another UHF tag such as the TnG RFID sticker on your car. You can pass through seamlessly without stopping your car.

Click here to learn about 4 common problems faced by a long-range reader.

Optional add on:
Add surge protector to protect all equipment from being damaged by lightning surge
Add push-button for manually open barrier gate
For hacking underneath the road, recommended to use the Unitronic RS422 data cable for better reliability.
Recommended to use MAG Barrier gate for maximum compatibility and reliability

Start enjoying the convenience of the latest RFID technology at an affordable price with rock-solid after-sales service today. Click here to contact us now for more info.
